Gear Hydraulic Pumps
High-performance, modular, and reliable gear pumps for industrial use.

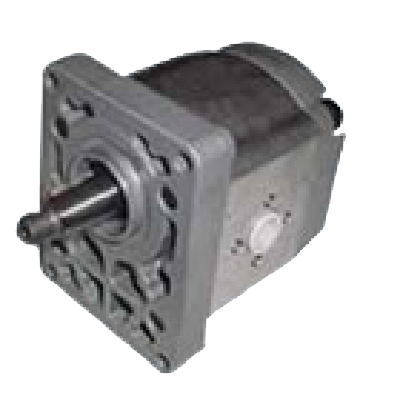

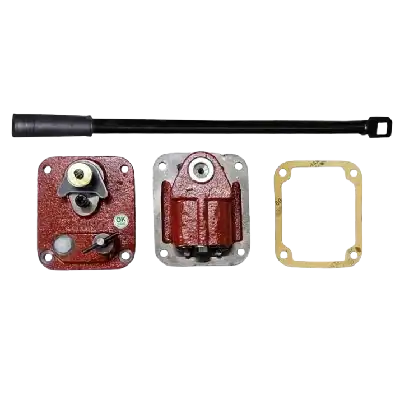

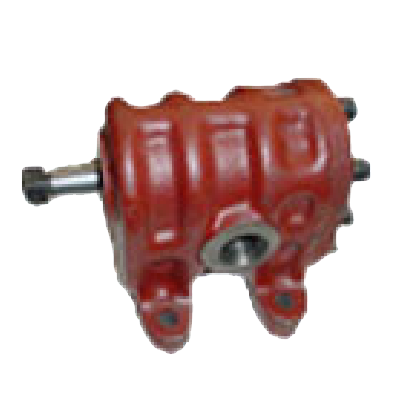

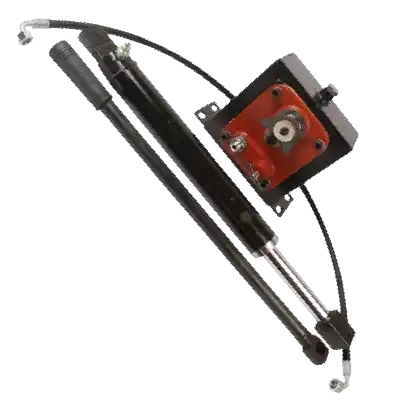

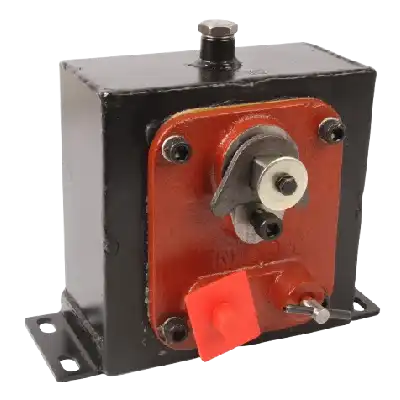

Product images
Performance Sheet
| Parameter | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Flow Rate (cm³/rev) | 4.5 | 6.3 | 8.2 | 11.3 | 15 | 19 | 22 | 25 | 28 |
| Rated Pressure (BAR) | 200 | 200 | 200 | 200 | 200 | 180 | 180 | 180 | 180 |
| Max. Pressure (BAR) | 250 | 250 | 250 | 250 | 250 | 250 | 200 | 200 | 200 |
| Min Speed (RPM) | 650 | ||||||||
| Nominal Speed (RPM) | 1500 | ||||||||
| Max. Speed (RPM) | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3000 | 3000 | 3000 |
| Vol. Efficiency @ Min. Speed (%) | 75 | 76 | 77 | 78 | 80 | 82 | 82 | 82 | 82 |
| Output @ Min. Speed (%) | 67 | 68 | 69 | 71 | 74 | 74 | 74 | 74 | 74 |
| Vol. Efficiency @ Nom. Speed (%) | 90 | 91 | 91 | 93 | 94 | 94 | 94 | 94 | 94 |
| Output @ Nom. Speed (%) | 80 | 82 | 83 | 84 | 85 | 85 | 85 | 85 | 85 |
| Vol. Efficiency @ Max. Speed (%) | 91 | 92 | 92 | 93 | 96 | 96 | 96 | 96 | 96 |
| Output @ Max. Speed (%) | 81 | 83 | 84 | 84 | 85 | 86 | 86 | 86 | 86 |
| Power @ Nom. Pressure & Speed (kW) | 3.1 | 401 | 5.6 | 7.4 | 10 | 10.2 | 12.0 | 11.0 | 11.0 |
| Power @ Max. Pressure & Speed (kW) | 7 | 9.5 | 13 | 17.4 | 17 | 17 | 18 | 18.5 | 19.0 |
*Values are representative for Group-2 models. Confirm exact ratings with datasheets.
Key Features
- Manufacturing three-piece Modular Gear Pump
- Extruded body in high resistance Aluminum Alloy
- Aluminum Alloy / cast iron flange & rear cover
- Taper, splined & straight shafts
- DU Bushing ensuring better lubrication & high pressure capability
- Good quality of seals: nitrile as standard & viton seal for high temp range
- Superior volumetric efficiency
- Quality & modern design are features of all pumps
- Optimized pressure pulsation, reduced noise level
- Less power consumption
- Assembling on multiple stage pumps available
Applications
Tractor-Implement control, Power Packs, Material Handing, Prosses and other Indutrial Applications, Steering & Axillary functions, Construction Machines
We manufacture high performance gear pumps that are positive displacement type having spur, helical or herring bone pair of gears. Gears are precision hobbed and press fitted and keyed to a drive shaft. The basic types of gears are:
Gear Types Available
- Internal gear pumps
- External gear pumps
- Foot-mounted internal gear
- Herringbone gear
More Application Examples
- Pressurizing fuel oil
- Machine tool lubrication
- Oil transfer & circulation
- Hydraulic power packs
Typical capacity up to 2000 LPM and withstands pressures of about 30 kg/cm² (application-dependent).
Design Features
- Back pullout-flanged design which facilitates easy maintenance without disturbing installed pipelines. Flanged end connections dismantling andinstallation is very convenient.
- Double helical herringbone gear design ensures'no' side thrust, maintains constant volumetric efficiency over longer period, for higher models only.
- Lesser number of modified profile teeth on rotors gives low moment of inertia, low frictional losses and high tooth life.
- Extra heavy shaft gives higher bearing life. Withstands bending load effectively.
- Low leakage path by design gives high volumetric efficiency.
- Equal-rating flanges on suction and delivery allows running of the pump in either direction.
- Pressure relief valve facilitate easy changeover of the direction.
Liquids These Gear Pumps Can Handle
(Representative list—confirm compatibility for your fluid.)
Acids
Ammonia
Bleaches
Coal Tar
Creosote
Dyes
Gasoline
Glycerine
Glue
Hot Grease
Kerosene
Lacquers
Lard
Molasses
All kinds of oils
Paints & Varnish
Printer’s Ink
Fruit Juices
Silicate
Tar
Turpentine
Vinegar
Yeast
Soap
